Dunlop SP2523 Cross Contitech FS 210-10 DS Air Shock Absorbers Max. Height 135MM
Product Description:
Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg. textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.
Specifications and Technical Parameters:
1B10×1T Air Springs Specifications:
| Air Fitting | 1/2 BSP | Bottom Cover Plate Diameter | 210 mm |
| Operation | Gas-filled | Minimum Height | 50 mm |
| Screw Type | 4 pcs×M10 | Maximum Height | 135 mm |
| Distance Air Hole Betweeen Screw | 90.5 mm | Design Height | 95 mm |
| Screw Center Distance | 181 mm | Installation Diameter | 295 mm |
| Screw Height | 25 mm | Bellow MAX. Diameter | 280 mm |
| Top Cover Plate Diameter | 210 mm | Pressure Ability | 3-8 bar |
1B10×1T Air Springs Technical Parameters:
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 120 | 6.94 | 9.41 | 11.9 | 14.4 | 16.9 | 19.3 | 3.4 |
| 100 | 8.94 | 12.1 | 15.2 | 18.3 | 21.4 | 24.4 | 2.9 |
| 80 | 10.9 | 14.6 | 18.3 | 22 | 25.7 | 29.3 | 2.2 |
| 60 | 12.2 | 16.4 | 20.4 | 24.6 | 28.7 | 32.7 | 1.4 |
Cross References:
Dunlop Pneuride
10''×1
Firestone
W01-R58-4057, W01 R58 4057, W01R584057, WO1-R58-4057, WO1 R58 4057, WO1R584057
Contitech
FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS, FS 21010DS, FS 210 10DS, FS210-10 DS, FS210 10 DS
Dunlop Springride
SP2523, SP 2523
Norgren
M/31101
Parker
9109024
Some Details of 1B10×1T Air Springs:
- 100% Brand New
- Durable and long service life.
- Direct replacement for your old or broken one, easy installation.
- Built to meet standard specification, strictly follow factory quality control.
- Due to the light and screen difference, the item's color may be slightly different from the pictures.

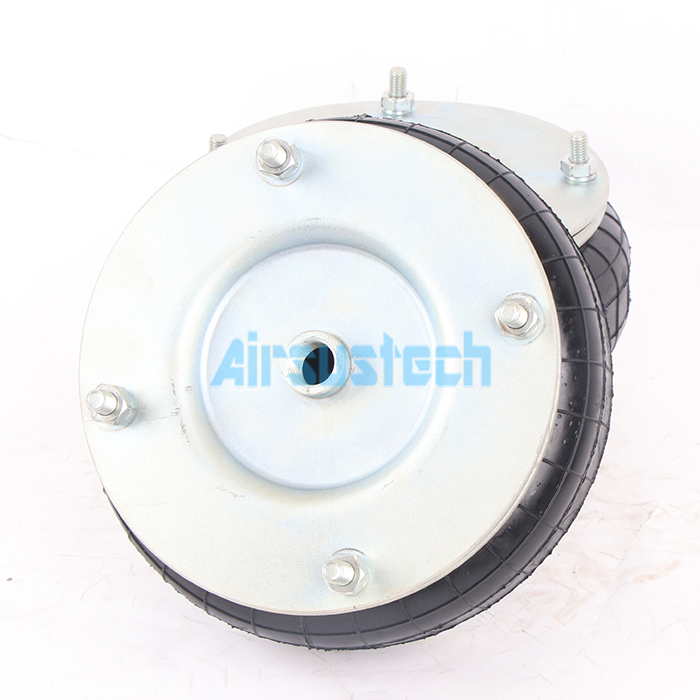

The Real Photos of 1B10×1T:
